Starting from a blank slate, Lucien Miller, CEO of Innov8tive Designs, set out to design the finest motors for the R/C aircraft market. Using the best materials available, such as hi-temperature N52 curved magnets, hi-temperature copper wire, high efficiency Kawasaki stator laminations, 7075 aluminum alloy and high-quality bearings, these motors truly live up to the name “BadAss”. If you’re tired of cheap motors that don’t last, or motors with a complete lack of performance information (we call them mystery motors), then we think you’re going to appreciate the new level of power, performance, and quality that BadAss motors offer.

Our performance charts are the most extensive and complete available anywhere. The specifications table included on each motor page is also very complete with all the information you may need to know about a motor. A full set of CAD drawings is also available for the motor, prop adapter and cross mount, allowing you to check the physical fit in your aircraft before you receive it. With all this information, it is easy to make an informed decision and purchase the ideal power system for your model every time.

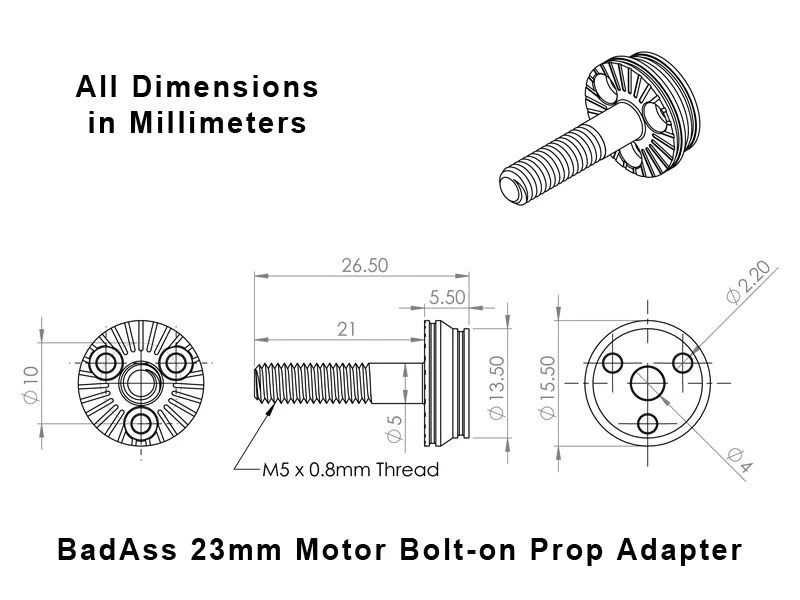

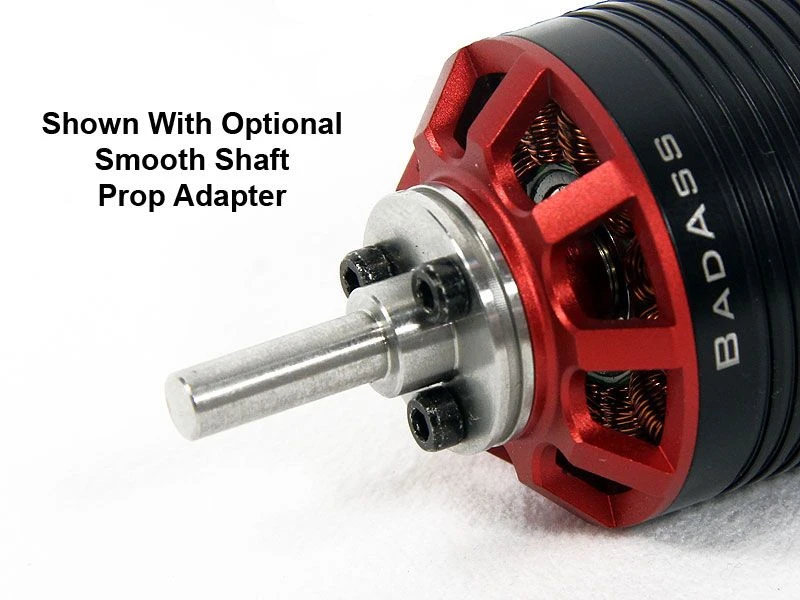

BadAss motors provide multiple options for mounting a propeller. Included with each motor is the standard bolt-on style prop adapter, which works for most applications. An optional extra-long bolt-on prop adapter is also available if you are using a prop with a thick hub along with a spinner with a thick backplate. Both adapters come with a standard hex nut and a Ny-Lock hex nut, for modelers that prefer the security of a locking style nut. Also available is the optional Bolt-on Smooth Shaft prop adapter. This part allows you to use a collet style prop adapter, folding prop hub, or aluminum spinner with integrated collet adapter on your motor without having to move the shaft. A full line of replacement parts is available to keep your BadAss motor in top shape for years to come.

Once you see how motor information should be presented and experience the exceptional build quality and performance of BadAss motors, you may never buy another “Mystery Motor” again. Let us show you a better way to select a power system, and we believe that you will become a BadAss Power Systems customer for life.

Features:

Strong N52 curved magnets rated for 150C (302F)
High temperature copper windings rated for 180C (356F)

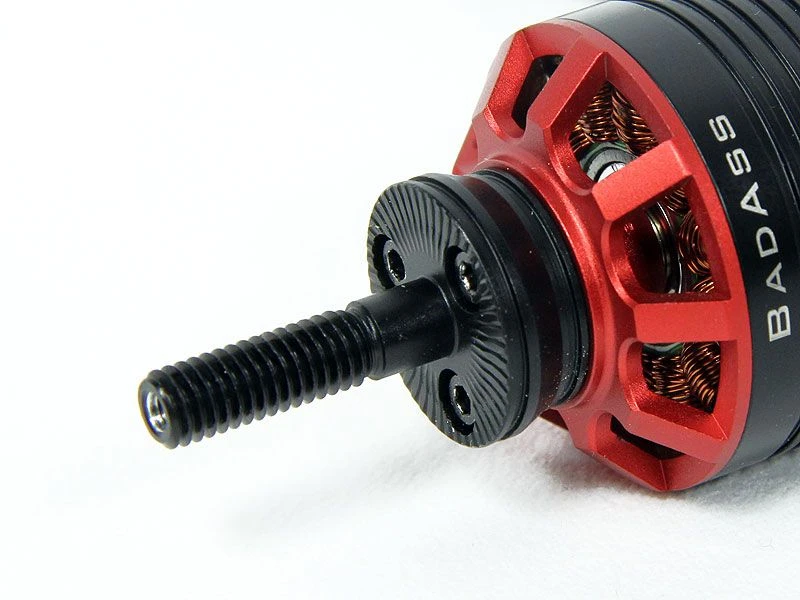

Bolt-on threaded prop adapter included with standard and Ny-Lock nut
Optional bolt-on smooth front shaft and extra-long threaded prop adapters are available

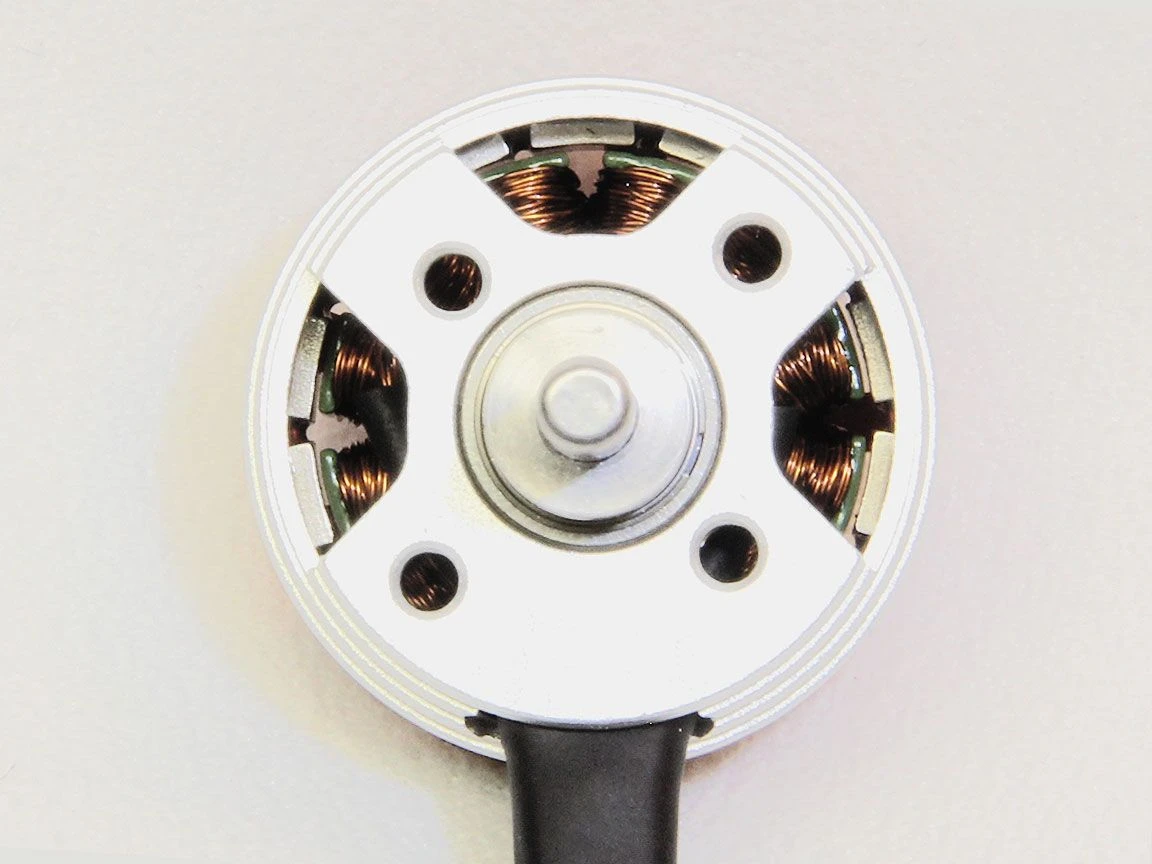

Versatile mounting options to fit most aircraft firewalls
Dual Shaft Retention system with C-clip and shaft collar

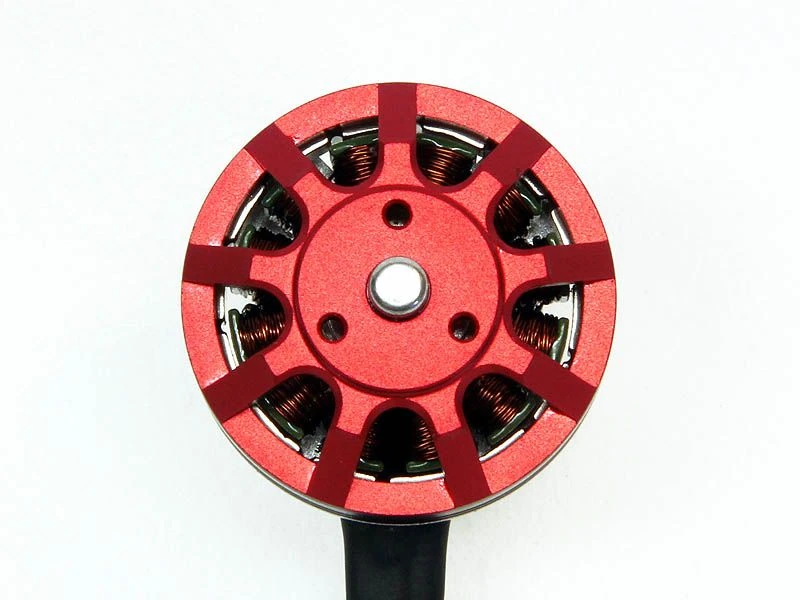

Ribbed Flux Ring for added strength and increased cooling area

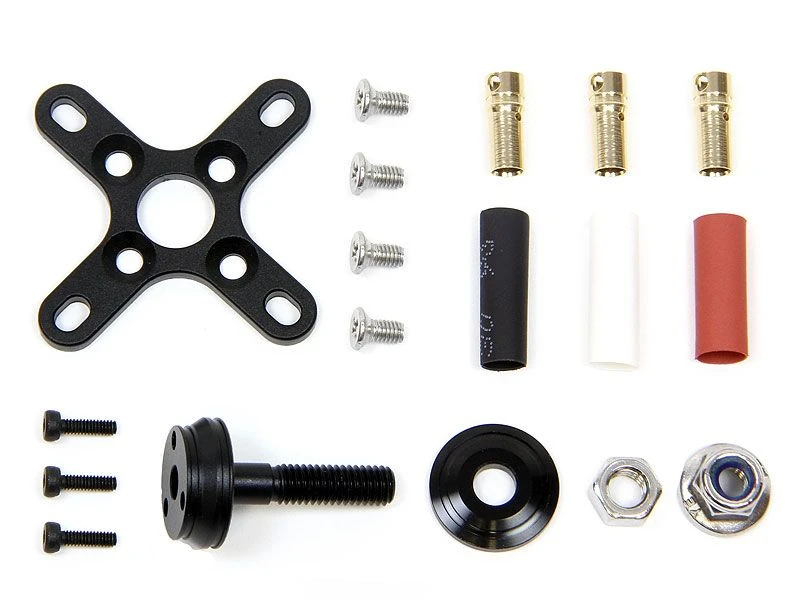

Included in the Box:

Motor with 3.5mm male bullet connectors installed
Set of three 3.5mm female bullet connectors for your ESC
Set of three red, black, and white heat shrink for your ESC

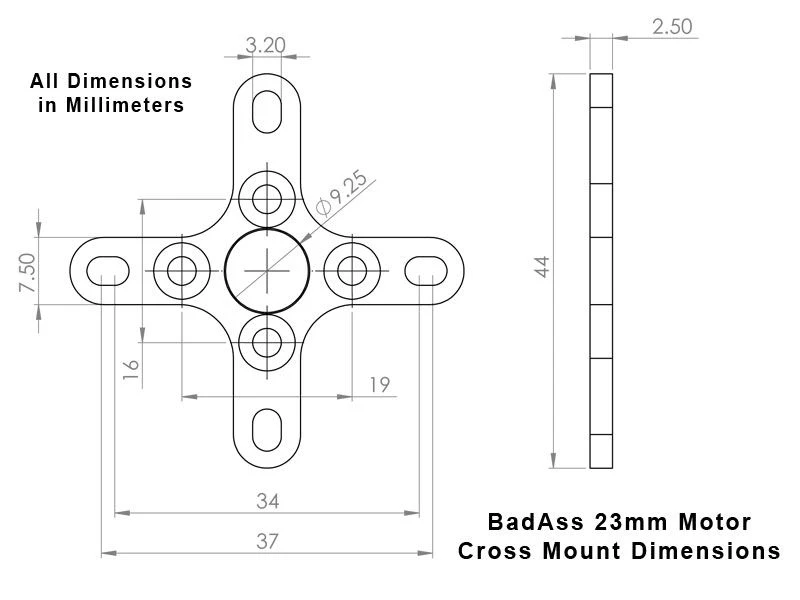

Cross Mount with 4 flat head mounting screws
Bolt-on Prop Adapter with 3 hex socket head screws
1 Regular Prop Nut, and 1 Nylon Locking Prop Nut

CLICK HERE for the Performance Data Chart

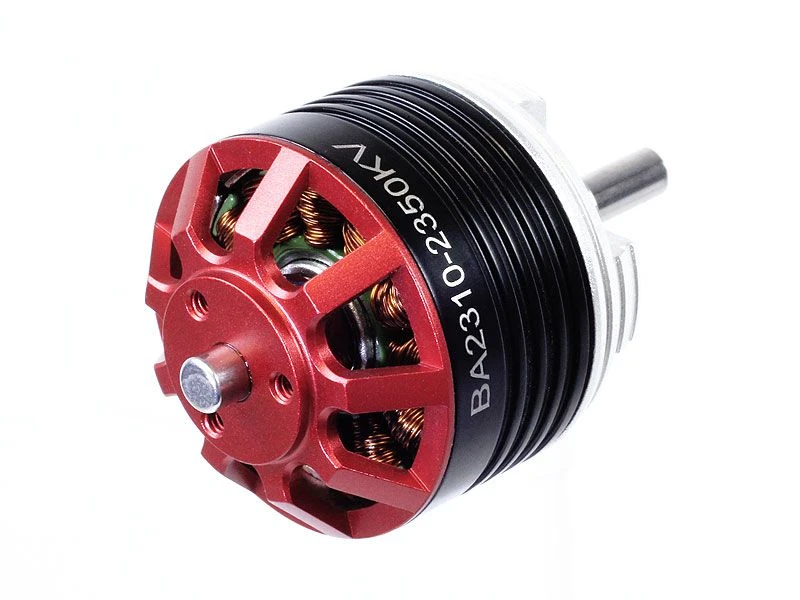

BadAss 2310-2350Kv Specifications
Stator Diameter	23.0 mm (0.906 in)
Stator Thickness	10.0 mm (0.394 in)
Number of Stator Slots	12
Number of Magnet Poles	14
Motor Wind	16 Turn Delta
Motor Kv Value	2350 RPM per Volt
No Load Current (Io)	2.34 Amps @ 10 Volts
Motor Resistance (Rm) per Phase	0.044 Ohms
Motor Resistance (Rm) Phase to Phase	0.029 Ohms
Maximum Continuous Current	42 Amps
Max Continuous Power (2-cell Li-Po)	310 Watts
Max Continuous Power (3-cell Li-Po)	470 Watts
Max Continuous Power (4-cell Li-Po)	620 Watts
Motor Weight	58.2 grams (2.05 oz.)

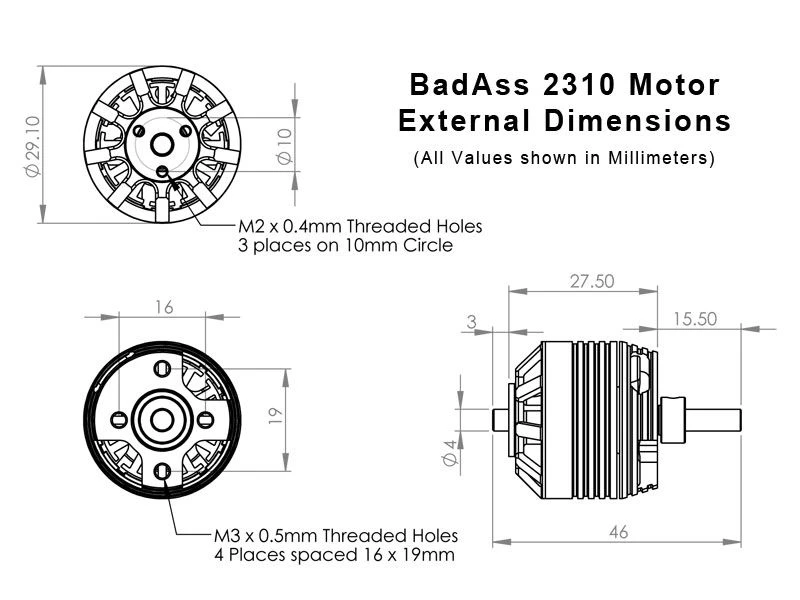

Outside Diameter	29.1 mm (1.146 in.)
Shaft Diameter	4.00 mm (0.157 in.)
Motor Body Length	27.6 mm (1.087 in.)
Overall Shaft Length	46.0 mm (1.614 in.)
Mounting Hole Dimensions	16mm x 19mm
Motor Timing	5-10 degrees
PWM Frequency	8 KHz
