Cobra C-2202/70 Brushless Motor, Kv=1530

Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all sides, with separate compartments to protect the motor and accessory pack.

The Cobra 2202 series motors have a 3.0mm shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Since these motors are typically soldered directly to the speed controller to save weight, the 2202 motors come without bullet connectors and feature pre-tinned motor leads. These motors also have a cross mount built right into the back plate for easy installation on your model.

Included with every Cobra 2202 Series Motor is a complete accessory package which contains the following items:

● Four M2x8mm Motor Mount Screws
● O-ring prop adapter with 2 screws
● 20mm dia. x 2mm O-Ring

The O-Ring prop adapter is a reversible unit with a 5.5mm centering ring on one side to fit GWS Slow-Fly props, and a 7.0mm centering ring on the other side to fit GWS DD series props. With the proper center hole adapter ring, GWS Slow-Fly props and other brands will also fit perfectly on the prop adapter.

Click here for Cobra C-2202/70 Propeller Data Chart

Cobra C-2202/70 Motor Specifications
Stator Diameter	22.0 mm (0.866 in)
Stator Thickness	2 mm (0.079 in)
Number of Stator Slots	12
Number of Magnet Poles	14
Motor Wind	70 Turn Delta
Motor Kv Value	1530 RPM per Volt
No Load Current (Io)	0.28 Amps @ 8 Volts
Motor Resistance (Rm) per Phase	0.504 Ohms
Motor Resistance (Rm) Phase to Phase	0.336 Ohms
Maximum Continuous Current	6 Amps
Max Continuous Power (2-cell Li-Po)	45 Watts
Motor Weight	15.0 grams (0.53 oz.)
Outside Diameter	26.8 mm (1.06 in.)
Shaft Diameter	3.00 mm (0.118 in.)
Motor Body Length	10.4 mm (0.41 in.)
Overall Shaft Length	18.6 mm (0.73 in.)
Motor Timing	5-10 degrees
PWM Frequency	8 KHz

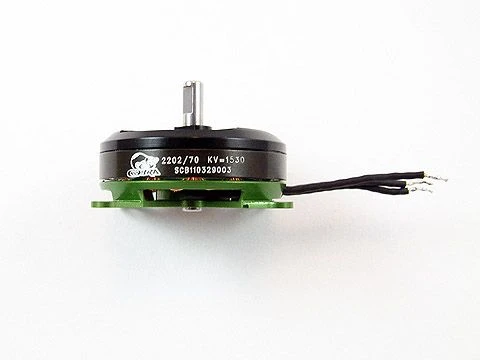

Front View

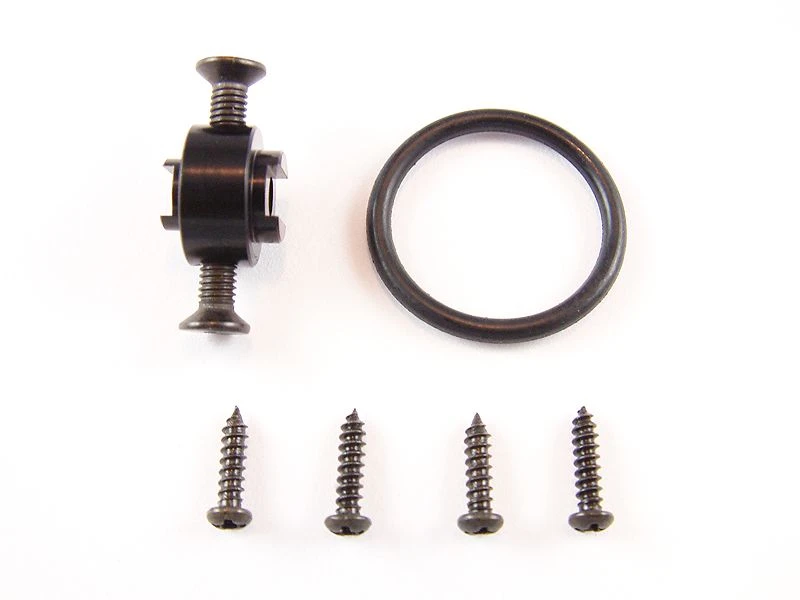

Items Included in Hardware Package

Cobra Motor Packaging

Package Interior
