Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all sides, with separate compartments to protect the motor and accessory pack.

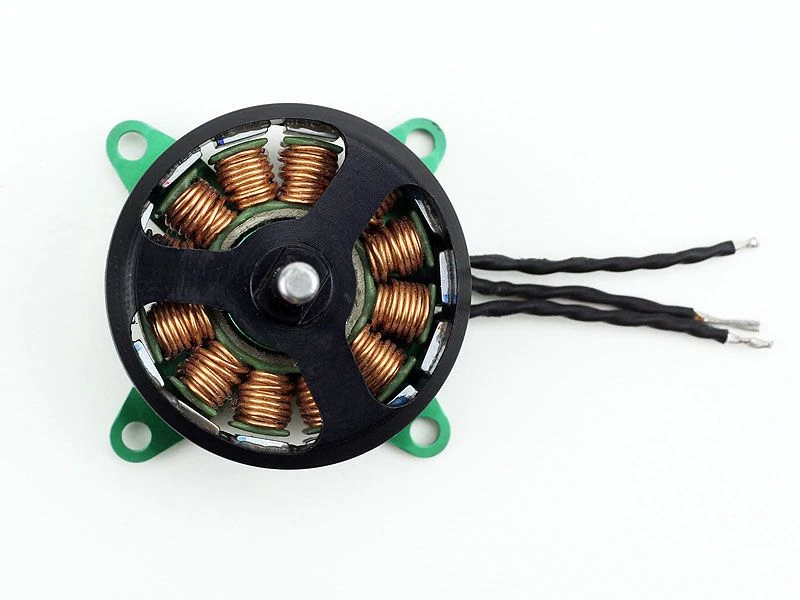

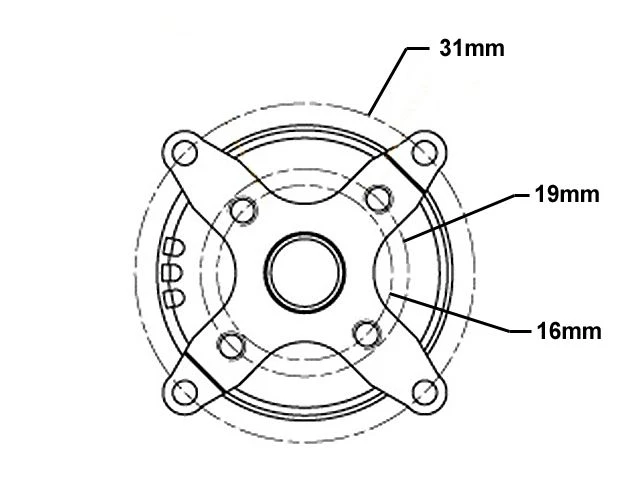

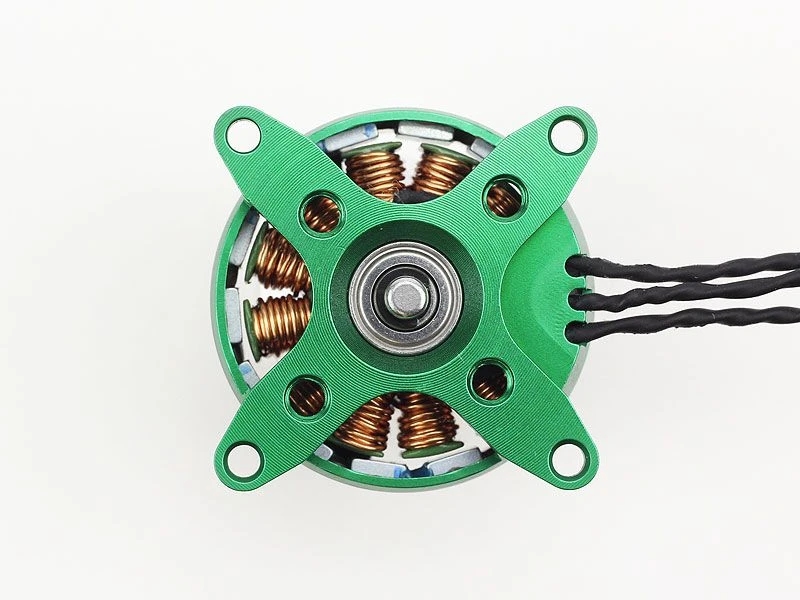

The Cobra 2203 series motors have a 3.0mm shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Since these motors are typically soldered directly to the speed controller to save weight, the 2203 motors come without bullet connectors and feature pre-tinned motor leads. These motors also have a cross mount built right into the back plate for easy installation on your model.

The Cobra 2203 E36-F1S Edition motor was developed specifically for the new E36 and F1S classes of Free-Flight aircraft. These airplanes use a short 5-10 second motor run, to climb as high as possible, before gliding back down with no control from the pilot. The most common props for this motor is the Graupner 7.5×4 folding model, running on a 2-cell Li-Po battery. This prop pulls around 17 amps, which exceeds the motors max continuous current rating of 15 amps, but since it is only run for 5 to 10 seconds at a time, the motor will not be damaged.

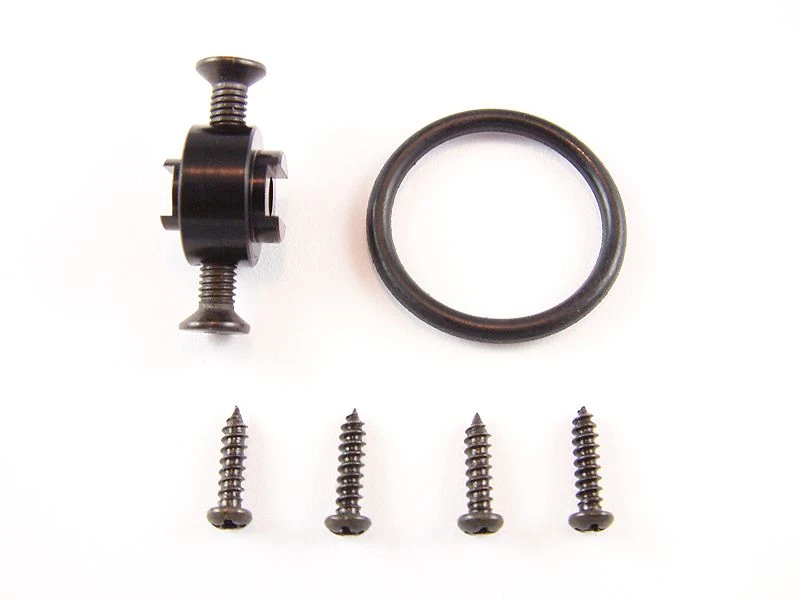

Included with every Cobra 2203 Series Motor is a complete accessory package which contains the following items:

● Four M2x8mm Motor Mount Screws
● O-ring prop adapter with 2 screws
● 20mm dia. x 2mm O-Ring

The O-Ring prop adapter is a reversible unit with a 5.5mm centering ring on one side to fit GWS Slow-Fly props, and a 7.0mm centering ring on the other side to fit GWS DD series props. With the proper center hole adapter ring, GWS Slow-Fly props and other brands will also fit perfectly on the prop adapter.

Click here for the Cobra C-2203/28 E36-F1S Propeller Data Chart

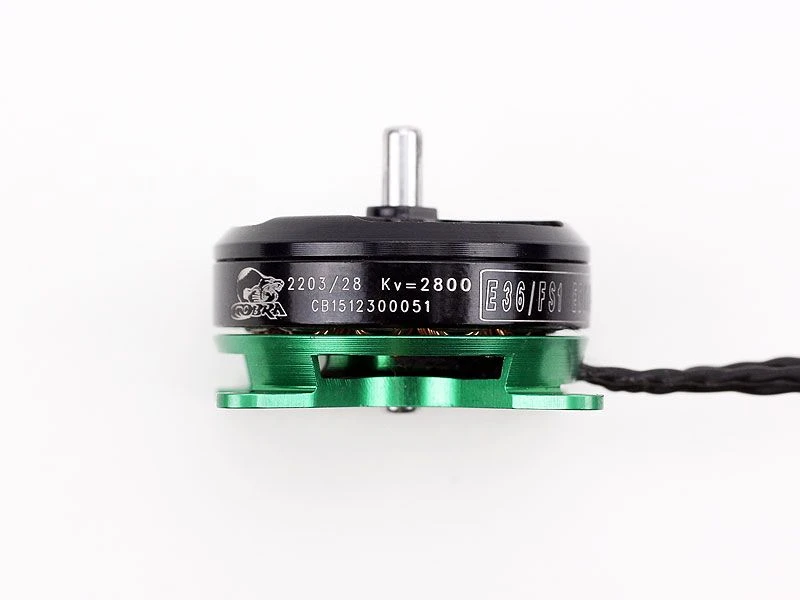

Cobra 2203/28 E36-F1S Motor Specifications
Stator Diameter	22.0 mm (0.866 in)
Stator Thickness	3.0 mm (0.118 in)
Number of Stator Slots	12
Number of Magnet Poles	14
Motor Wind	28 Turn Delta
Motor Kv Value	2800 RPM per Volt
No Load Current (Io)	0.72 Amps @ 8 Volts
Motor Resistance (Rm) per Phase	0.147 Ohms
Motor Resistance (Rm) Phase to Phase	0.098 Ohms
Maximum Continuous Current	15 Amps
Max Continuous Power (2-cell Li-Po)	110 Watts
Motor Weight	17.5 grams (0.62 oz.)
Outside Diameter	26.8 mm (1.055 in.)
Shaft Diameter	3.00 mm (0.118 in.)
Motor Body Length	11.4 mm (0.449 in.)
Overall Shaft Length	19.6 mm (0.772 in.)
Motor Timing	5-10 degrees
PWM Frequency	8 KHz
