Cobra C-2204/32 Brushless Motor, Kv=1960

Original price was: $20.99.Current price is: $14.69.

Overview

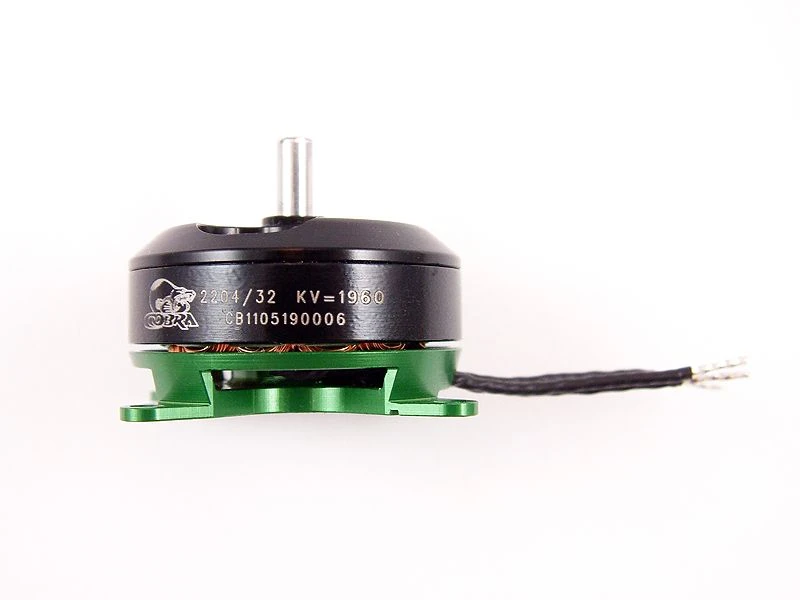

Cobra C-2204/32 Brushless Airplane Motor

fast shipping

There are quality problems, free return and exchange

100% environmentally friendly material

No-Questions-Asked Returns

This motor is specifically for Airplanes. If you are looking for the Multirotor version of this motor, click here.

Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all sides, with separate compartments to protect the motor and accessory pack.

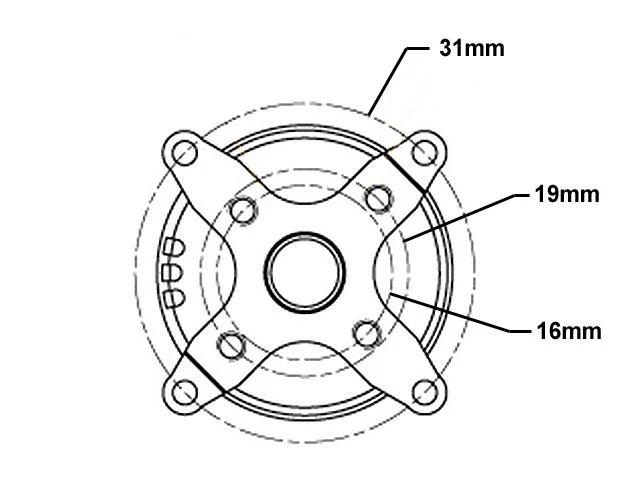

The Cobra 2204 series motors have a 3.0mm shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Since these motors are typically soldered directly to the speed controller to save weight, the 2204 motors come without bullet connectors and feature pre-tinned motor leads. These motors also have a cross mount built right into the back plate for easy installation on your model.

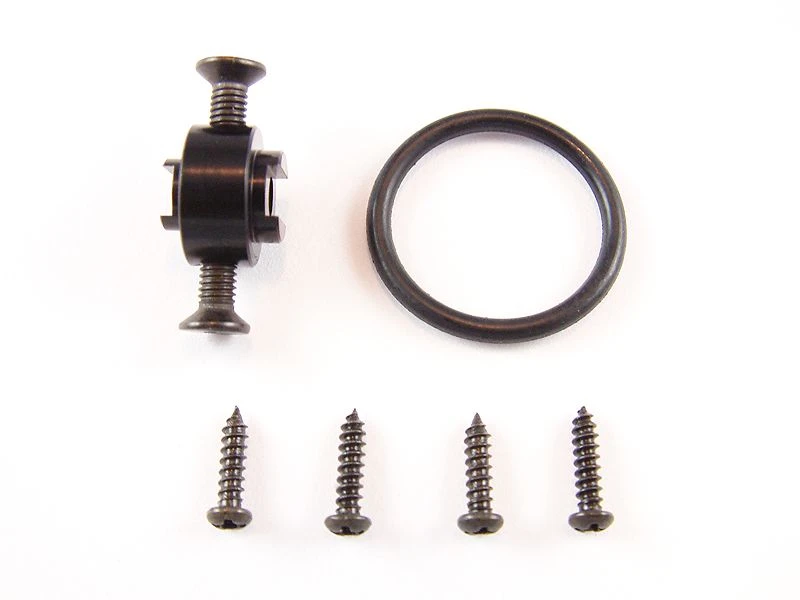

Included with every Cobra 2204 Series Motor is a complete accessory package which contains the following items:

● Four M2x8mm Motor Mount Screws
● O-ring prop adapter with 2 screws
● 20mm dia. x 2mm O-Ring

The O-Ring prop adapter is a reversible unit with a 5.5mm centering ring on one side to fit GWS Slow-Fly props, and a 7.0mm centering ring on the other side to fit GWS DD series props. With the proper center hole adapter ring, GWS Slow-Fly props and other brands will also fit perfectly on the prop adapter.

Click here for the Cobra C-2204/32 Propeller Data Chart

Cobra 2204/32 Motor Specifications
Stator Diameter	22.0 mm (0.866 in)
Stator Thickness	4.0 mm (0.157 in)
Number of Stator Slots	12
Number of Magnet Poles	14
Motor Wind	32 Turn Delta
Motor Kv Value	1960 RPM per Volt
No Load Current (Io)	0.58 Amps @ 8 Volts
Motor Resistance (Rm) per Phase	0.153 Ohms
Motor Resistance (Rm) Phase to Phase	0.102 Ohms
Maximum Continuous Current	12 Amps
Max Continuous Power (2-cell Li-Po)	90 Watts
Max Continuous Power (3-cell Li-Po)	130 Watts
Motor Weight	22.5 grams (0.79 oz.)
Outside Diameter	27.0 mm (1.063 in.)
Shaft Diameter	3.00 mm (0.118 in.)
Motor Body Length	14.2 mm (0.559 in.)
Overall Shaft Length	21.8 mm (0.858 in.)
Motor Timing	5-10 degrees
PWM Frequency	8 KHz
