Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all six sides of the box, with 3 separate compartments to protect the motor, accessory pack and cross mount.

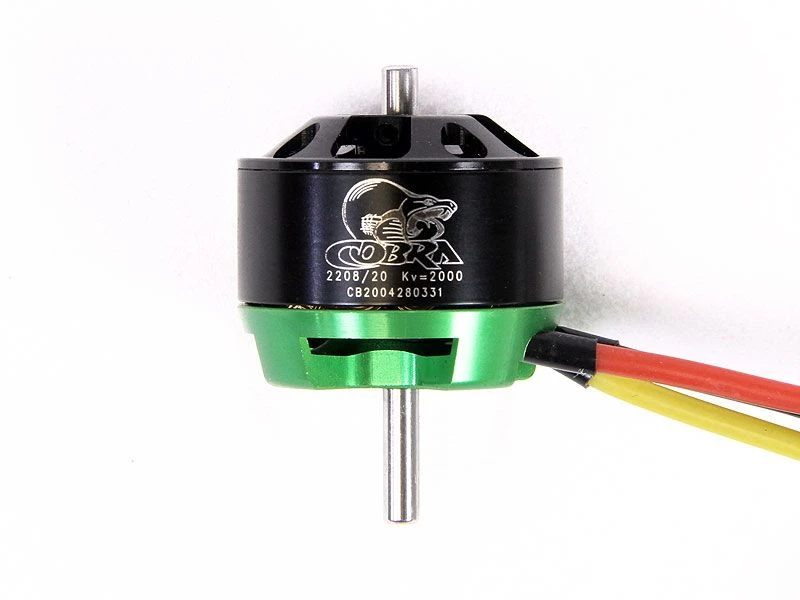

The Cobra 2208 series motors have a 1/8 inch (3.17mm) shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Also included on the motor are ultra-flexible motor leads with high-temp silicone rubber insulation and 3.5mm bullet connectors already installed.

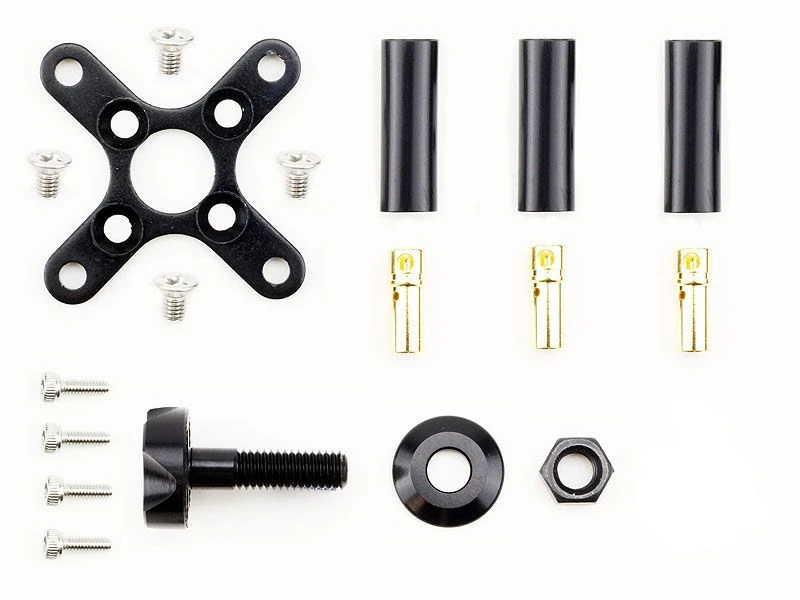

Included with every Cobra 2208 Series Motor is a complete accessory package which contains the following items:

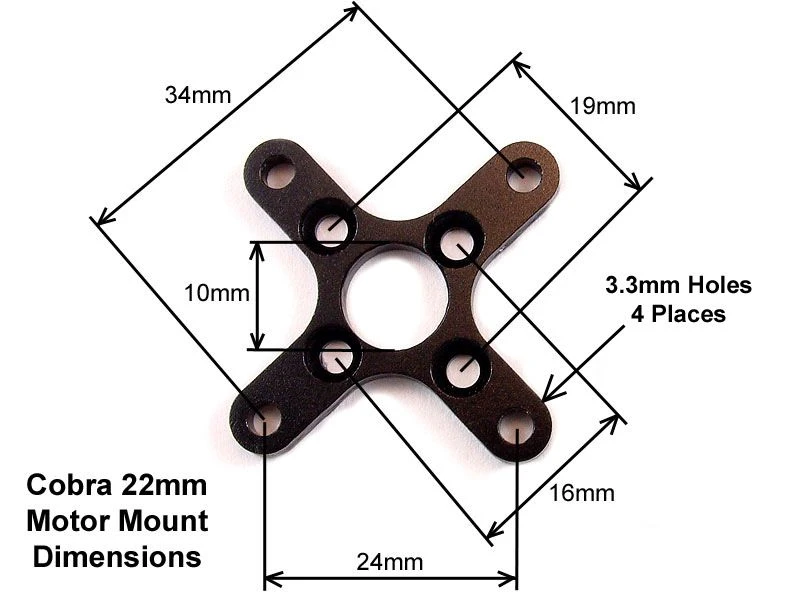

● Heavy Duty 3mm Thick Cross Style Motor Mount
● Four M3x6mm Motor Mount Screws

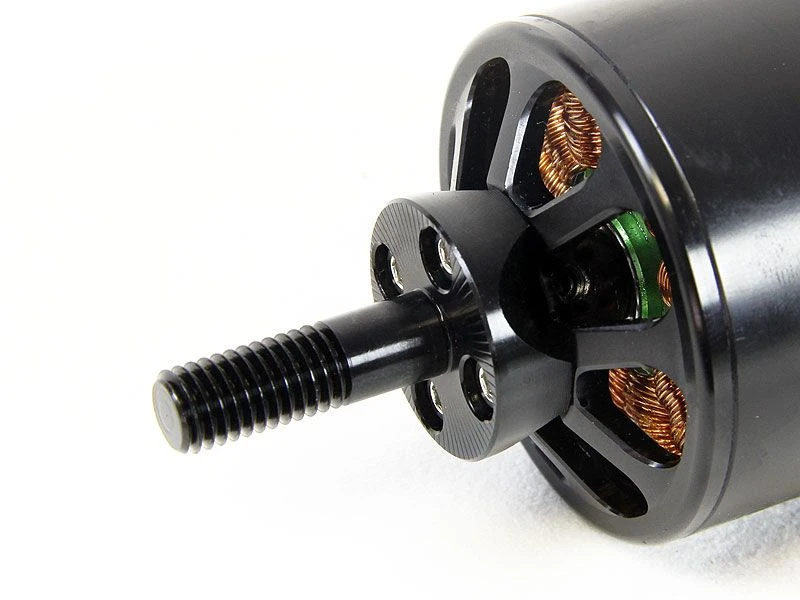

● Bolt-On style theaded prop adapter with 4 screws
● Three female 3.5mm bullet connectors
● Three pieces of heat-shrink tubing
Click here for the Cobra C-2208/20 Propeller Data Chart
| Cobra 2208/20 Motor Specifications | |
|---|---|
| Stator Diameter | 22.0 mm (0.866 in) |
| Stator Thickness | 8.0 mm (0.315 in) |
| Number of Stator Slots | 12 |
| Number of Magnet Poles | 14 |
| Motor Wind | 20 Turn Delta |
| Motor Kv Value | 2000 RPM per Volt |
| No Load Current (Io) | 0.80 Amps @ 8 Volts |
| Motor Resistance (Rm) per Phase | 0.096 Ohms |
| Motor Resistance (Rm) Phase to Phase | 0.064 Ohms |
| Maximum Continuous Current | 18 Amps |
| Max Continuous Power (2-cell Li-Po) | 135 Watts |
| Max Continuous Power (3-cell Li-Po) | 200 Watts |
| Motor Weight | 46.5 grams (1.64 oz.) |
| Outside Diameter | 27.7 mm (1.091 in.) |
| Shaft Diameter | 3.17 mm (0.125 in.) |
| Motor Body Length | 24.0 mm (0.945 in.) |
| Overall Shaft Length | 38.0 mm (1.496 in.) |
| Motor Timing | 5-10 degrees |
| PWM Frequency | 8 KHz |
For more information about this product and the rest of the Cobra Motors product line, please check out the Cobra Brushless Motors web site.
