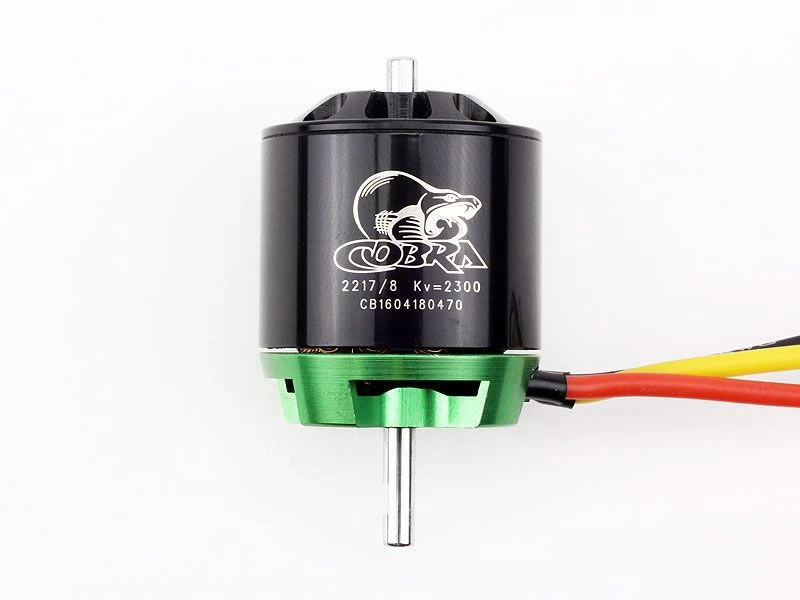

Cobra C-2217/8 Brushless Motor, Kv=2300

Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all six sides of the box, with 3 separate compartments to protect the motor, accessory pack and cross mount.

The Cobra 2217 series motors have a 1/8 inch (3.17mm) shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Also included on the motor are ultra-flexible motor leads with high-temp silicone rubber insulation and 3.5mm bullet connectors already installed.

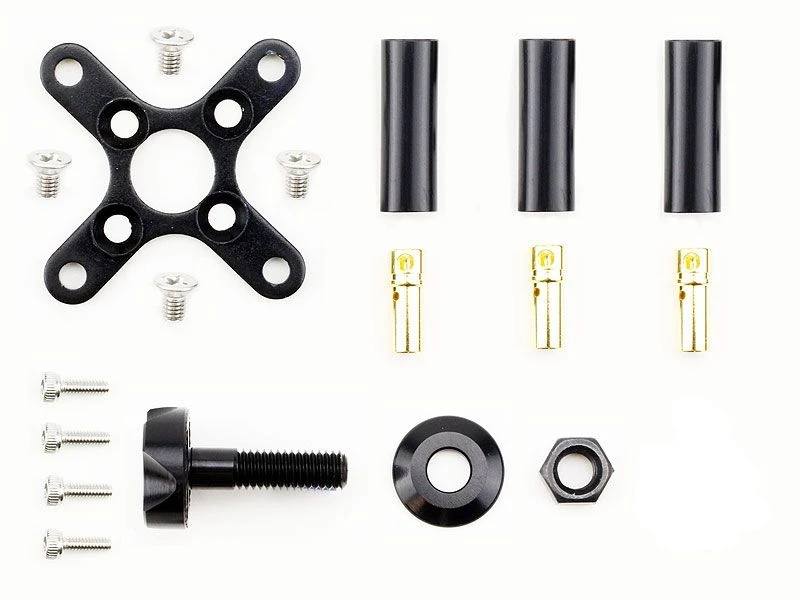

Included with every Cobra 2217 Series Motor is a complete accessory package which contains the following items:

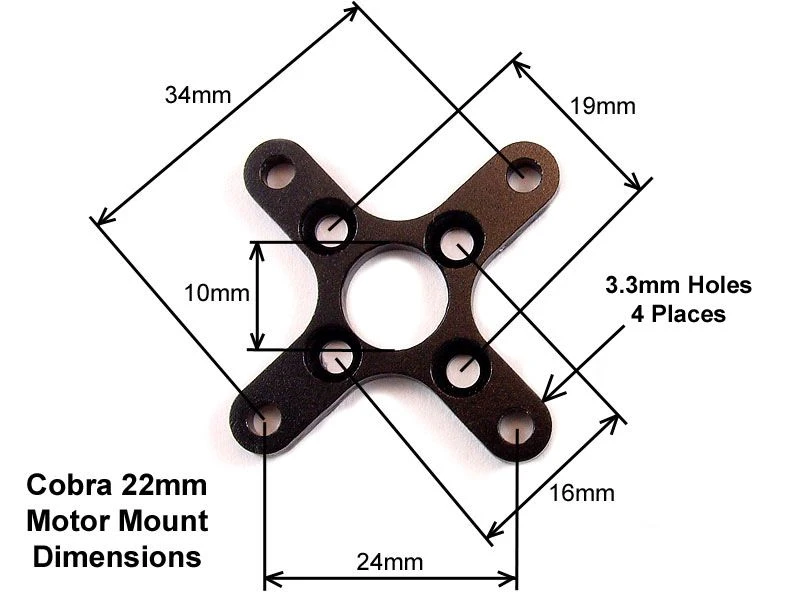

● Heavy Duty 3mm Thick Cross Style Motor Mount
● Four M3x6mm Motor Mount Screws

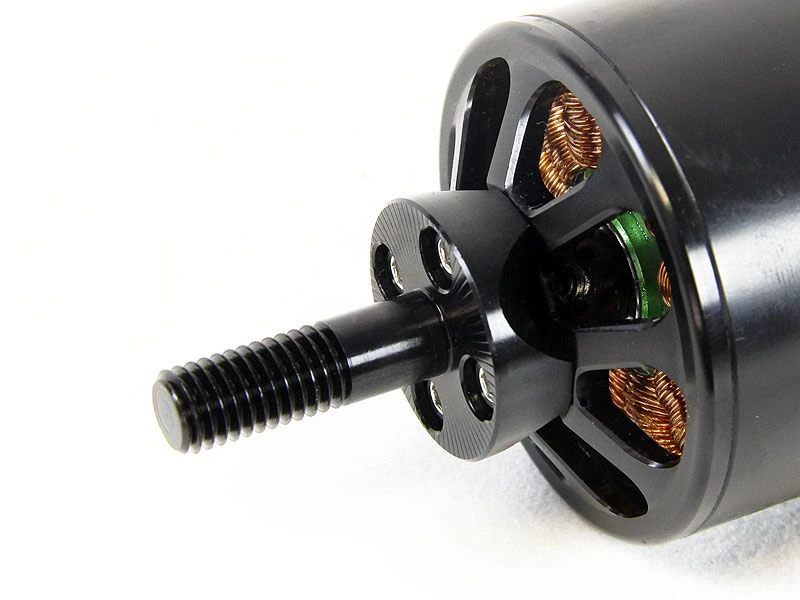

● Bolt-On style theaded prop adapter with 4 screws
● Three female 3.5mm bullet connectors
● Three pieces of heat-shrink tubing

Click here for the Cobra C-2217/8 Propeller Data Chart

Cobra 2217-8 Motor Specifications
Stator Diameter	22.0 mm (0.866 in)
Stator Thickness	17.0 mm (0.669 in)
Number of Stator Slots	12
Number of Magnet Poles	14
Motor Wind	8 Turn Delta
Motor Kv Value	2300 RPM per Volt
No Load Current (Io)	2.10 Amps @ 8 Volts
Motor Resistance (Rm) per Phase	0.042 Ohms
Motor Resistance (Rm) Phase to Phase	0.028 Ohms
Maximum Continuous Current	40 Amps
Max Continuous Power (2-cell Li-Po)	300 Watts
Max Continuous Power (3-cell Li-Po)	440 Watts
Motor Weight	74.0 grams (2.61 oz.)
Outside Diameter	27.7 mm (1.091 in.)
Shaft Diameter	3.17 mm (0.125 in.)
Motor Body Length	33.0 mm (1.299 in.)
Overall Shaft Length	47.0 mm (1.850 in.)
Motor Timing	5-10 degrees
PWM Frequency	8 KHz

For more information about this product and the rest of the Cobra Motors product line, please check out the Cobra Brushless Motors web site.
