Cobra C-2808/22 Brushless Motor, Kv=1330

Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all six sides of the box, with 3 separate compartments to protect the motor, accessory pack and cross mount.

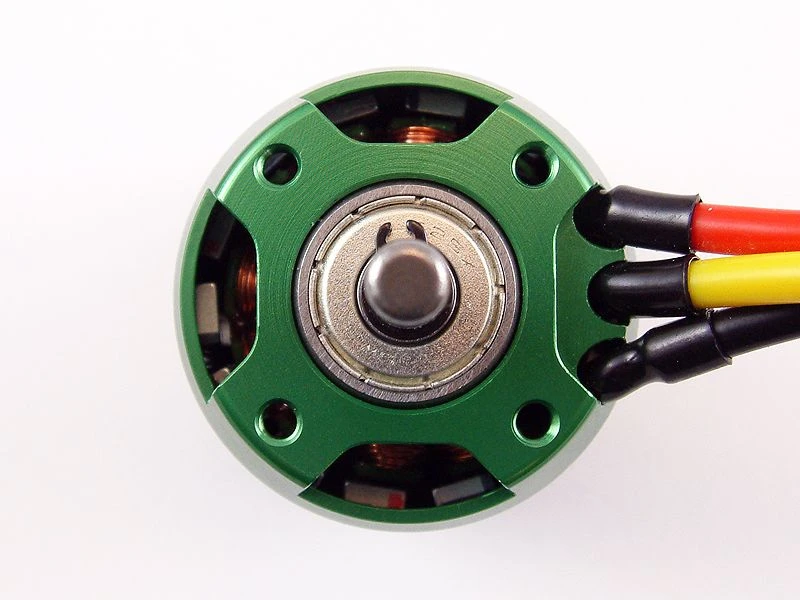

The Cobra 2808 series motors have a 5mm shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The internal bearing measures 11mm x 5mm x 5mm and the outer bearing measures a massive 16mm x 5mm x 5mm! The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Also included on the motor are ultra-flexible motor leads with high-temp silicone rubber insulation and 3.5mm bullet connectors already installed.

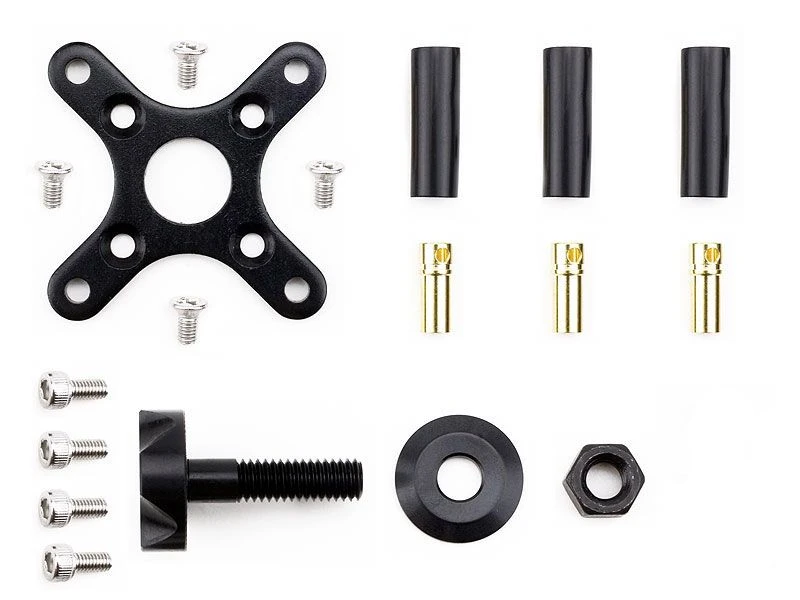

Included with every Cobra 2808 Series Motor is a complete accessory package which contains the following items:

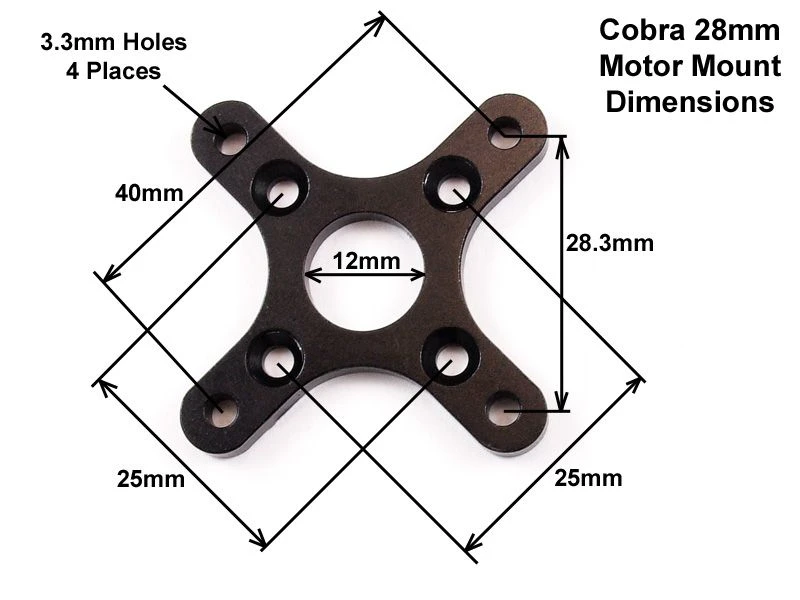

● Heavy Duty 3mm Thick Cross Style Motor Mount
● Four M3x6mm Motor Mount Screws

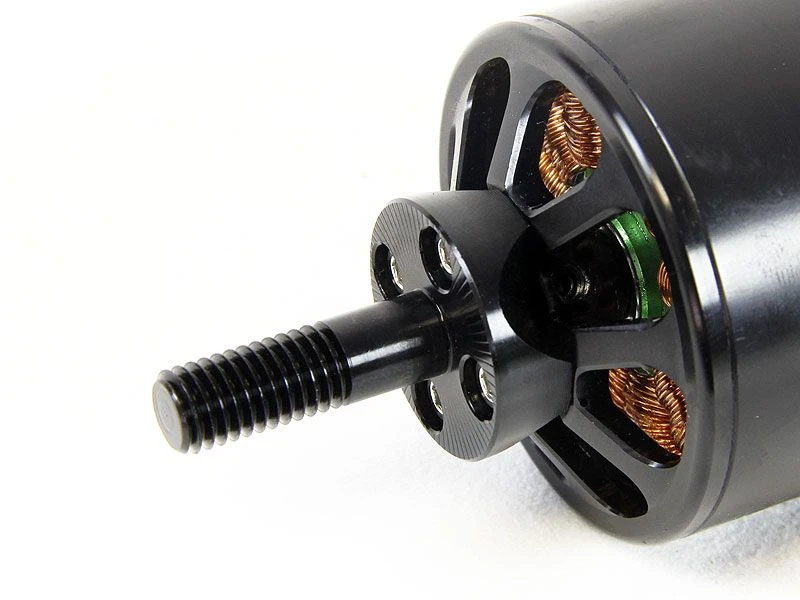

● Bolt-On style threaded prop adapter with 4 screws
● Three female 3.5mm bullet connectors
● Three pieces of heat-shrink tubing

Click here for Cobra C-2808/22 Propeller Data Chart

Cobra 2808/22 Motor Specifications
Stator Diameter	28.0 mm (1.102 in)
Stator Thickness	8.0 mm (0.315 in)
Number of Stator Slots	12
Number of Magnet Poles	14
Motor Wind	22 Turn Delta
Motor Kv Value	1330 RPM per Volt
No Load Current (Io)	0.82 Amps @ 8 Volts
Motor Resistance (Rm) per Phase	0.084 Ohms
Motor Resistance (Rm) Phase to Phase	0.056 Ohms
Maximum Continuous Current	24 Amps
Max Continuous Power (3-cell Li-Po)	270 Watts
Max Continuous Power (4-cell Li-Po)	360 Watts
Motor Weight	80.5 grams (2.85 oz.)
Outside Diameter	35.0 mm (1.378 in.)
Shaft Diameter	5.00 mm (0.197 in.)
Motor Body Length	28.1 mm (1.106 in.)
Overall Shaft Length	48.0 mm (1.889 in.)
Motor Timing	5-10 degrees
PWM Frequency	8 KHz
