Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all six sides of the box, with 3 separate compartments to protect the motor, accessory pack and cross mount.

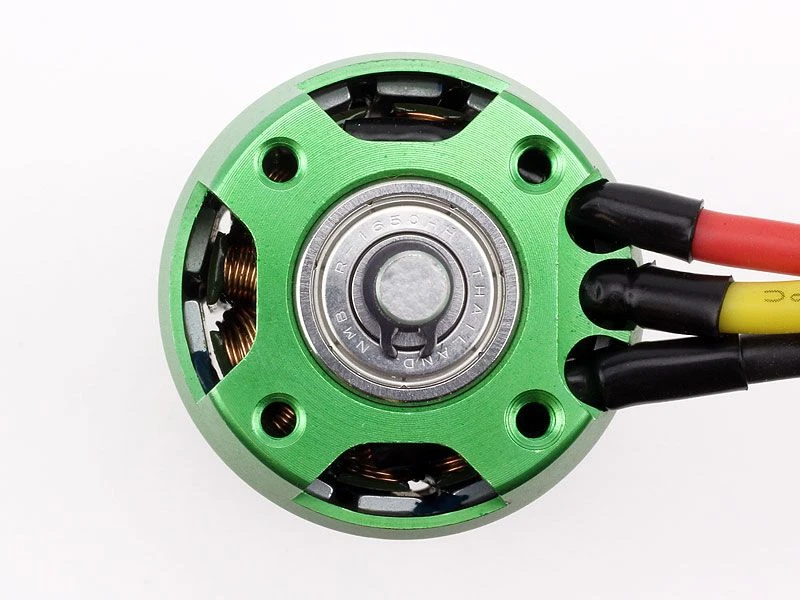

The Cobra 2826 series motors have a 5mm shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The internal bearing measures 11mm x 5mm x 5mm and the outer bearing measures a massive 16mm x 5mm x 5mm! The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Also included on the motor are ultra-flexible motor leads with high-temp silicone rubber insulation and 3.5mm bullet connectors already installed.

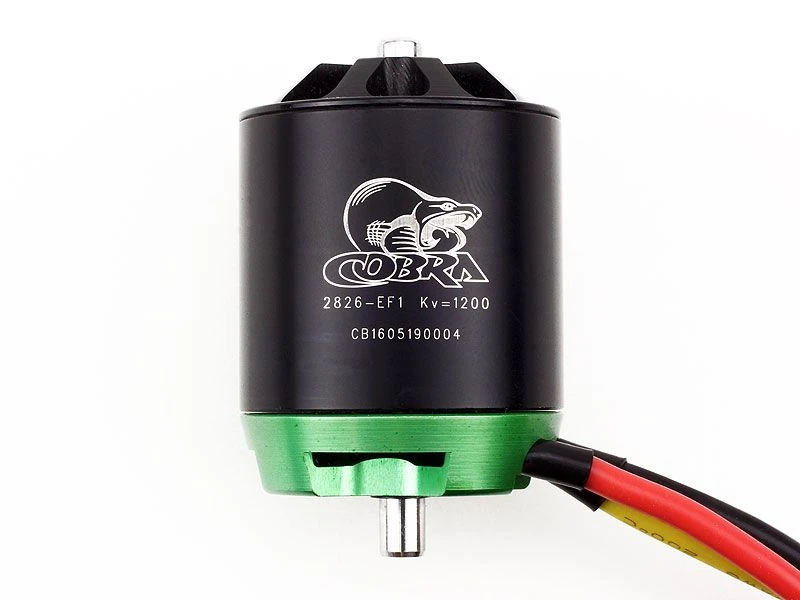

The Cobra C-2826-EF1 motor was developed for Electric Pylon Racing, and has been accepted as a certified motor by the EF1 Competition racing committee. The Kv value of this motor is optimized for use with an APC 8×8-E prop running on a 4-cell Li-Po battery pack, as stated in the EF1 Racing Rules. The rear shaft on this motor is cut shorter than the standard Cobra 2826 motors. There is just enough protruding to use the optional shaft retaining collar, for additional security on the motor shaft, with none extra protruding into the battery compartment of your model.

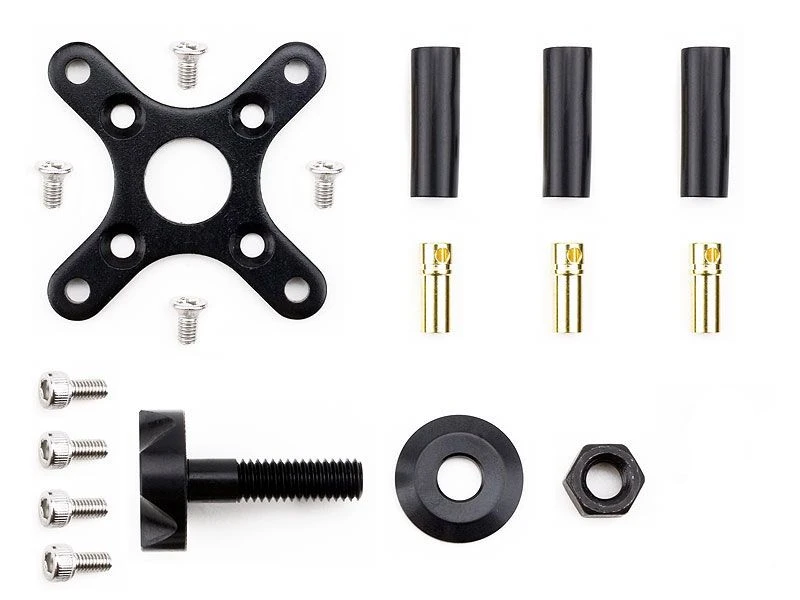

Included with every Cobra 2826 Series Motor is a complete accessory package which contains the following items:

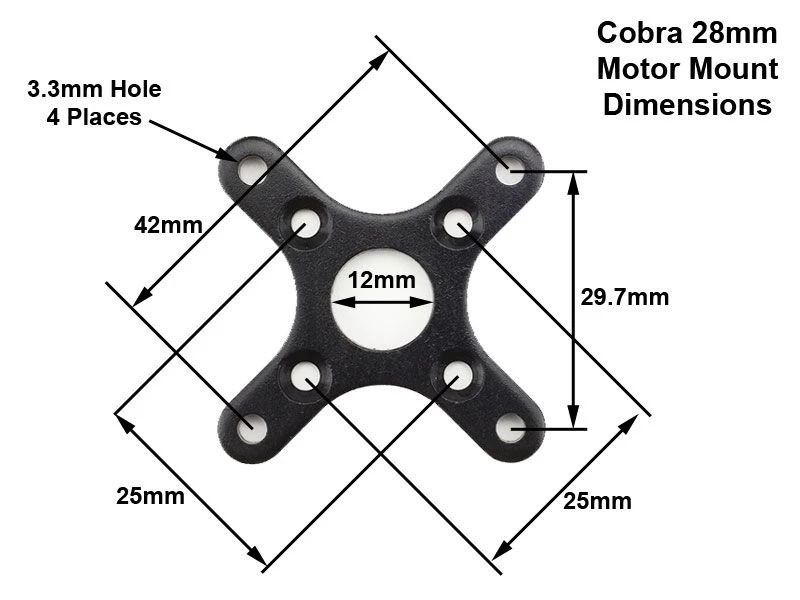

● Heavy Duty 3mm Thick Cross Style Motor Mount
● Four M3x6mm Motor Mount Screws

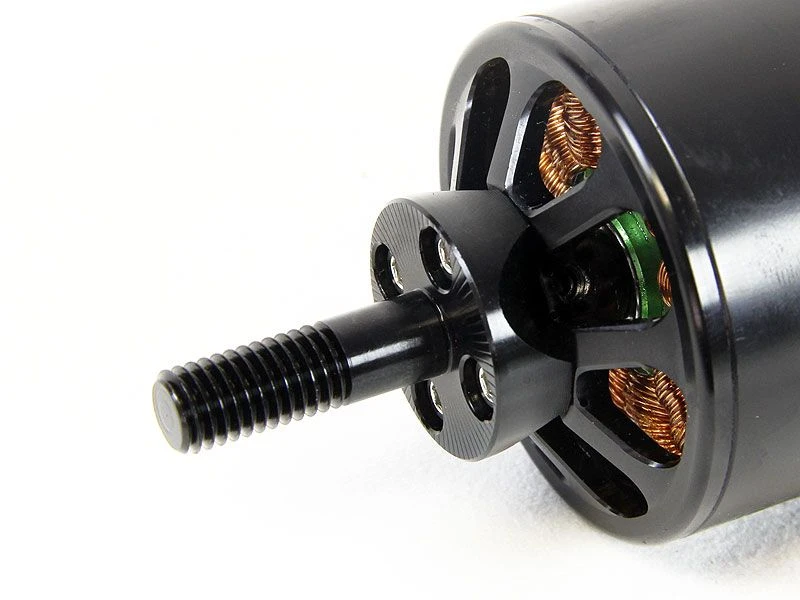

● Bolt-On style threaded prop adapter with 4 screws
● Three female 3.5mm bullet connectors
● Three pieces of heat-shrink tubing

Click here for the Cobra C-2826-EF1 Propeller Data Chart

Cobra 2826/8 Motor Specifications
Stator Diameter	28.0 mm (1.102 in)
Stator Thickness	26.0 mm (1.024 in)
Number of Stator Slots	12
Number of Magnet Poles	14
Motor Wind	7 Turn Delta
Motor Kv Value	1200 RPM per Volt
No Load Current (Io)	3.23 Amps @ 15 Volts
Motor Resistance (Rm) per Phase	0.033 Ohms
Motor Resistance (Rm) Phase to Phase	0.022 Ohms
Maximum Continuous Current	68 Amps
Max Continuous Power (3-cell Li-Po)	750 Watts
Max Continuous Power (4-cell Li-Po)	1020 Watts
Motor Weight	176 grams (6.21 oz.)
Outside Diameter	35.0 mm (1.378 in.)
Shaft Diameter	5.00 mm (0.197 in.)
Motor Body Length	46.0 mm (1.811 in.)
Overall Shaft Length	52.0 mm (2.047 in.)
Motor Timing	5-15 degrees
PWM Frequency	8 KHz
