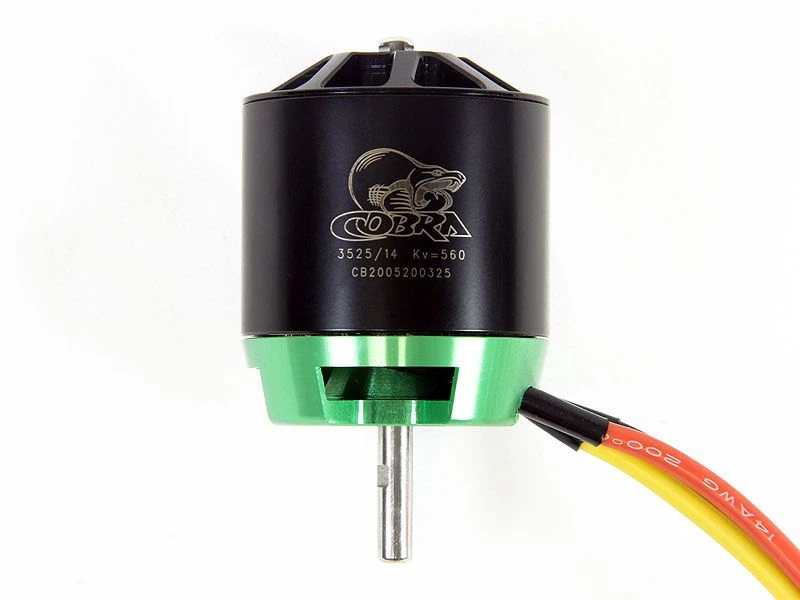

Cobra C-3525/14 Brushless Motor, Kv=560

Cobra Brushless Motors offer performance and value for Sport Flyers and Competition pilots alike. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all six sides of the box, with 3 separate compartments to protect the motor, accessory pack and cross mount.

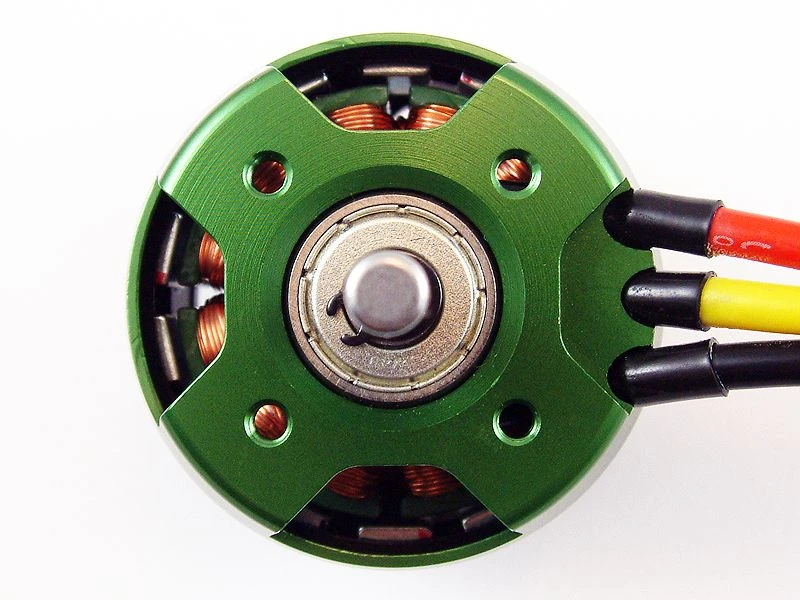

The Cobra 3525 series motors have a 5mm shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The internal bearing measures 11mm x 5mm x 5mm and the outer bearing measures a massive 16mm x 5mm x 5mm! The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Also included on the motor are ultra-flexible motor leads with high-temp silicone rubber insulation and 4mm bullet connectors already installed.

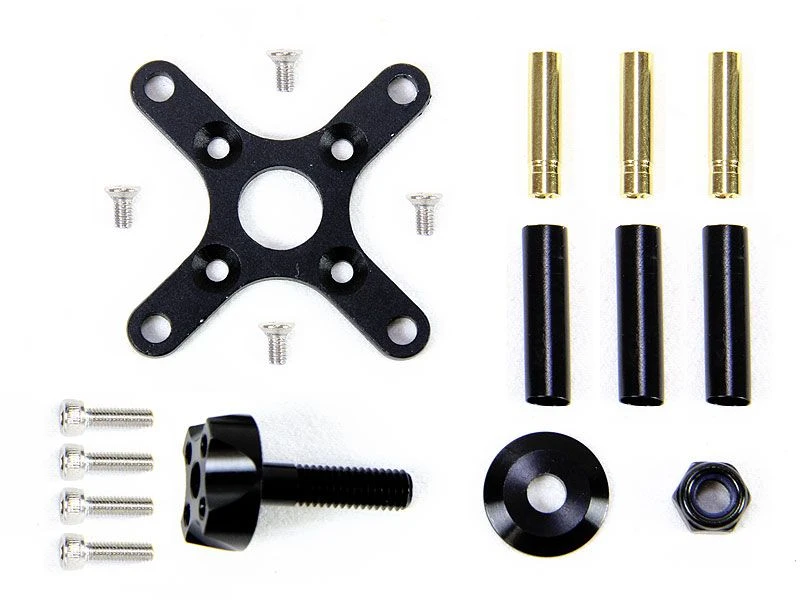

Included with every Cobra 3525 Series Motor is a complete accessory package which contains the following items:

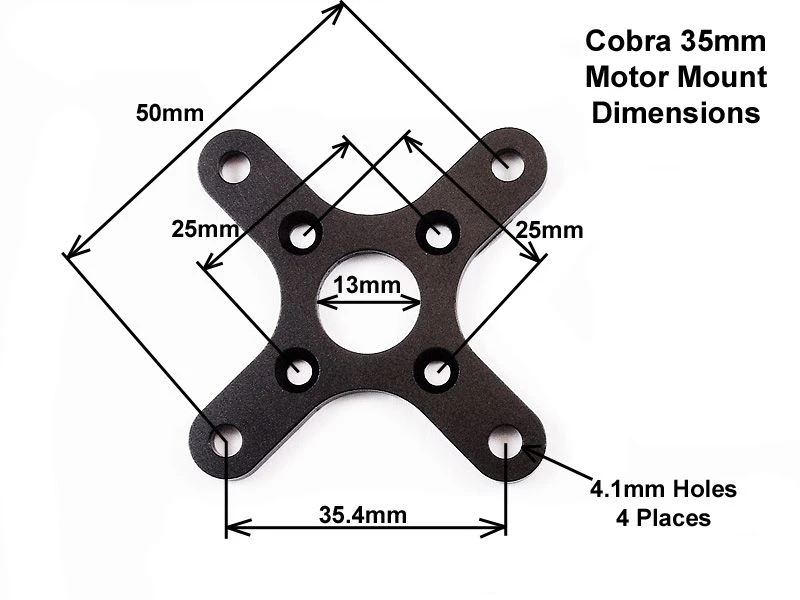

● Heavy Duty 3mm Thick Cross Style Motor Mount
● Four M3x6mm Motor Mount Screws

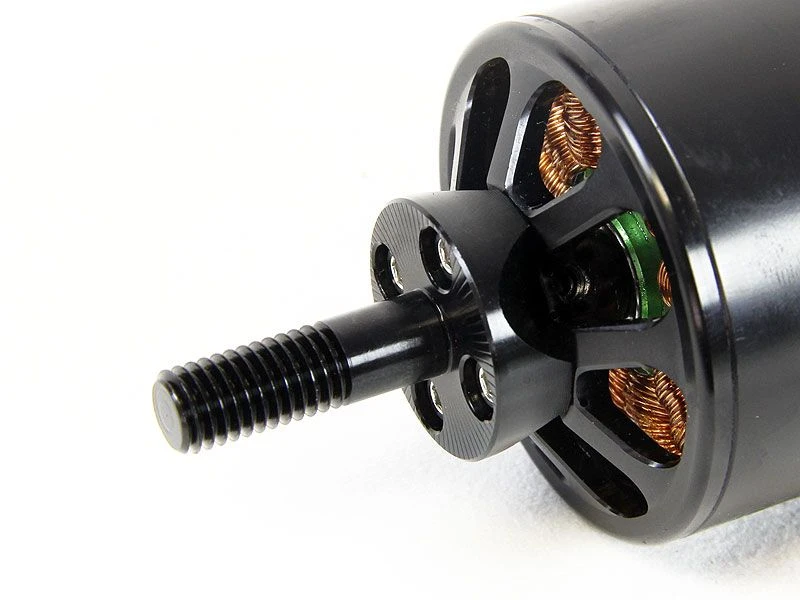

● Bolt-On style threaded prop adapter with 4 screws
● Three female 4mm bullet connectors
● Three pieces of heat-shrink tubing

Click here for the Cobra C-3525/14 Propeller Data Chart

Cobra 3525/14 Motor Specifications
Stator Diameter	35.0 mm (1.378 in)
Stator Thickness	25.0 mm (0.984 in)
Number of Stator Slots	12
Number of Magnet Poles	14
Motor Wind	14 Turn Delta
Motor Kv Value	560 RPM per Volt
No Load Current (Io)	1.18 Amps @ 20 Volts
Motor Resistance (Rm) per Phase	0.055 Ohms
Motor Resistance (Rm) Phase to Phase	0.037 Ohms
Maximum Continuous Current	45 Amps
Max Continuous Power (4-cell Li-Po)	670 Watts
Max Continuous Power (5-cell Li-Po)	830 Watts
Max Continuous Power (6-cell Li-Po)	1000 Watts
Motor Weight	253 grams (8.92 oz.)
Outside Diameter	43.0 mm (1.693 in.)
Shaft Diameter	5.00 mm (0.197 in.)
Motor Body Length	51.0 mm (2.008 in.)
Overall Shaft Length	73.0 mm (2.874 in.)
Motor Timing	5-10 degrees
PWM Frequency	8 KHz
