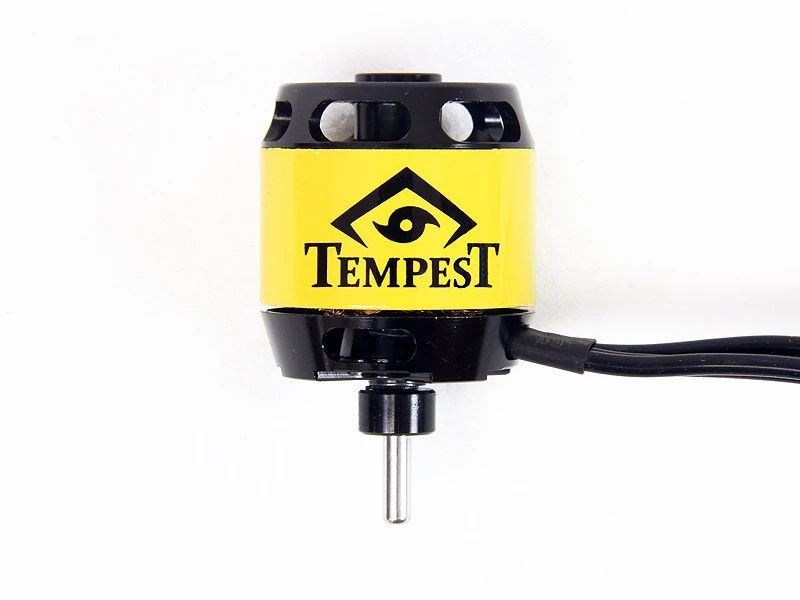

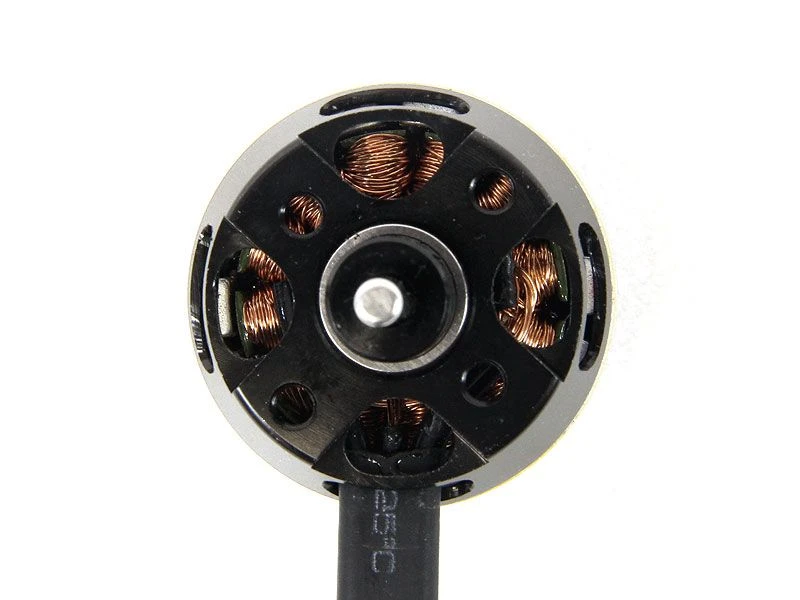

Tempest 2213-1130Kv Brushless Motor

For many years modelers had to choose from two ends of the power system spectrum:  Cheap motors made with inferior quality components or top-quality motors, made from the best materials, but with a price tag that was out of reach for many pilots.  The Tempest line of Brushless Motors provides the best of both worlds, giving high power output at an affordable price that will not break the bank!

Unlike most other motors available today, that provide virtually no performance information, Tempest motors include full Performance Data charts. These charts use actual testing data, from a motor testing dyno, measured at multiple input voltages using dozens of different propellers, so you know exactly what performance to expect for your model.

Also available for every Tempest motor is a full range of replacement parts including Prop Adapters, Cross Mounts, Shaft Kits and Bearing Sets.

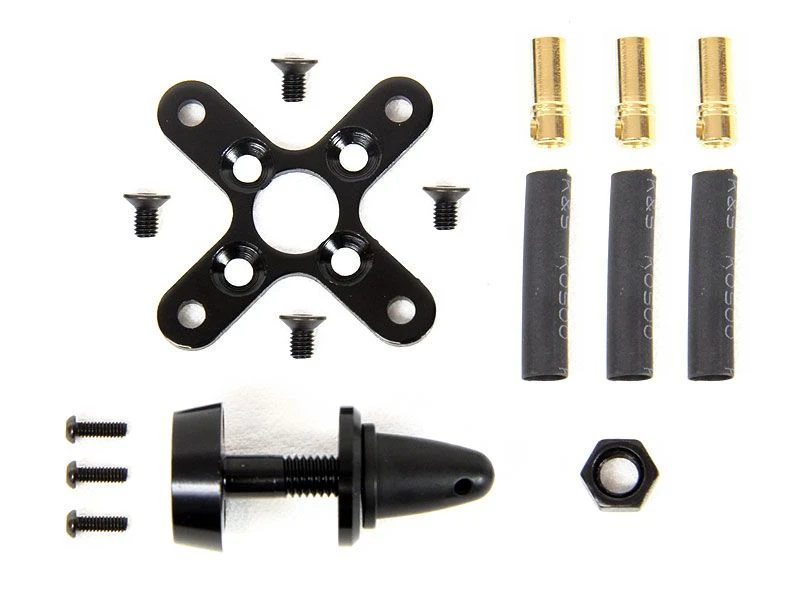

Included with every Tempest 22mm series motor is a complete accessory kit that includes the following items:

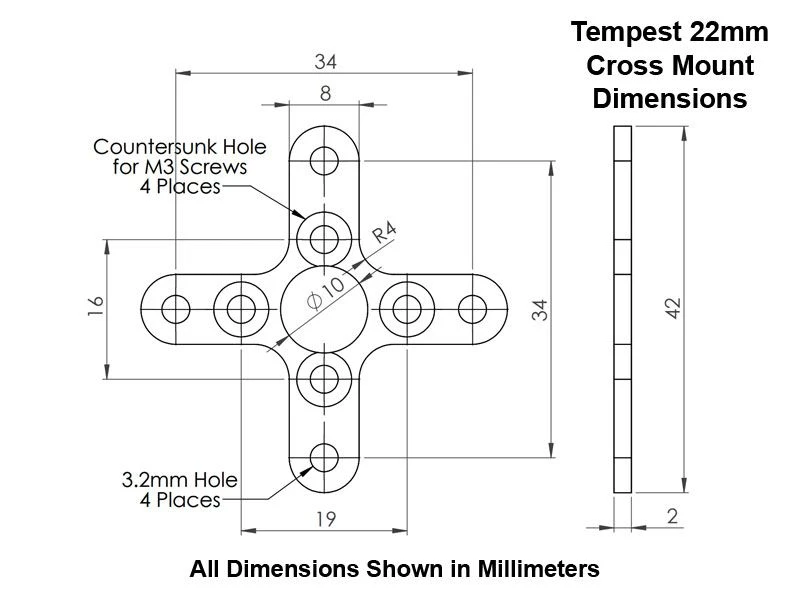

• Aluminum Cross Mount with mounting screws

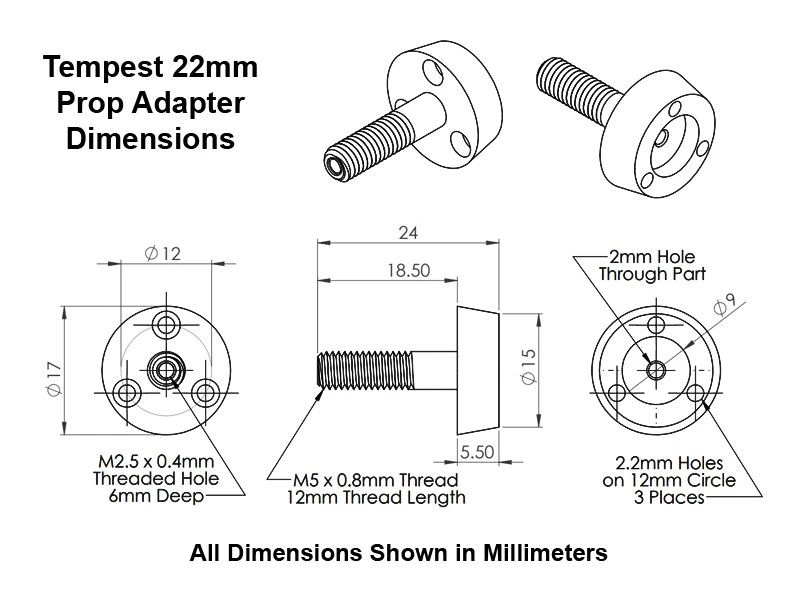

• Threaded Prop Adapter with mounting screws
• Machined Aluminum Prop Washer
• Standard Hex Prop Nut
• Machined Aluminum Spinner Cone Prop Nut

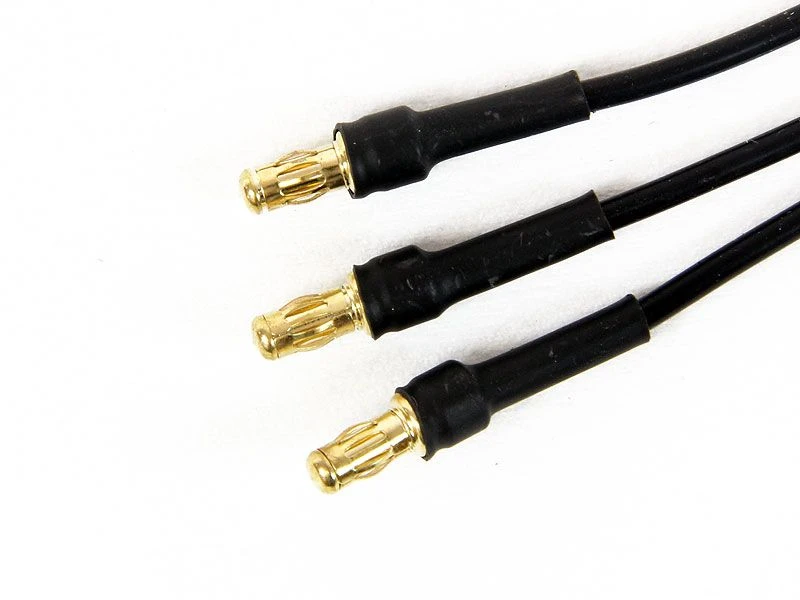

• A set of 3 Female Bullet connectors to match the ones already installed on the motor
• A set of 3 pieces of black Heat-Shrink Tubing
• Hex wrenches to fit the crossmount and prop adapter screws

CLICK HERE for the Performance Data Chart

Tempest 2213-1130Kv Specifications
Stator Diameter	22.0 mm (0.866 in)
Stator Thickness	13.0 mm (0.512 in)
Number of Stator Slots	12
Number of Magnet Poles	14
Motor Wind	18 Turn Delta
Motor Kv Value	1130 RPM per Volt
No Load Current (Io)	0.98 Amps @ 10 Volts
Motor Resistance (Rm) per Phase	0.132 Ohms
Motor Resistance (Rm) Phase to Phase	0.088 Ohms
Maximum Continuous Current	24 Amps
Max Continuous Power (2-cell Li-Po)	180 Watts
Max Continuous Power (3-cell Li-Po)	270 Watts
Max Continuous Power (4-cell Li-Po)	355 Watts
Motor Weight	60.0 grams (2.12 oz.)
Outside Diameter	28.2 mm (1.110 in.)
Shaft Diameter	3.00 mm (0.118 in.)
Motor Body Length	29.9 mm (1.177 in.)
Overall Shaft Length	46.0 mm (1.811 in.)
Motor Timing	5-10 degrees or Auto
PWM Frequency	8-16 KHz



	CLICK HERE to Download the CAD STEP file of the bare Tempest 2213 motor
	CLICK HERE to Download the CAD STEP file of the Tempest 2213 motor with the Prop Adapter and Cross Mount attached
