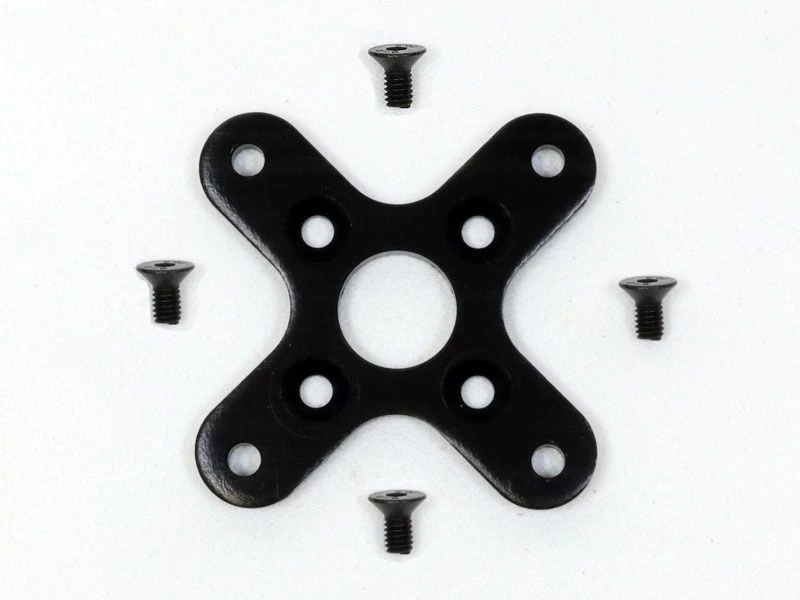

Tempest Cross Mount For 41mm Series Motors

This Tempest motor cross mount is an exact replacement for the one that comes with the Tempest 4120, and 4130 size motors.  It comes packaged with a set of four M4x0.7mm flat head Hex screws which are 8mm long to attach the mount to your motor.

The Tempest 41mm Cross Style motor mount is stamped from high strength 4mm thick aluminum sheet stock and together with the 4 motor screws it weighs 18.6 grams.

The motor mount holes have a 30mm center to center spacing on both diagonals. The hole spacing for the firewall mounting holes is 56mm center to center as measured on the diagonals through the center of the mount.
